Industrial finishing equipment

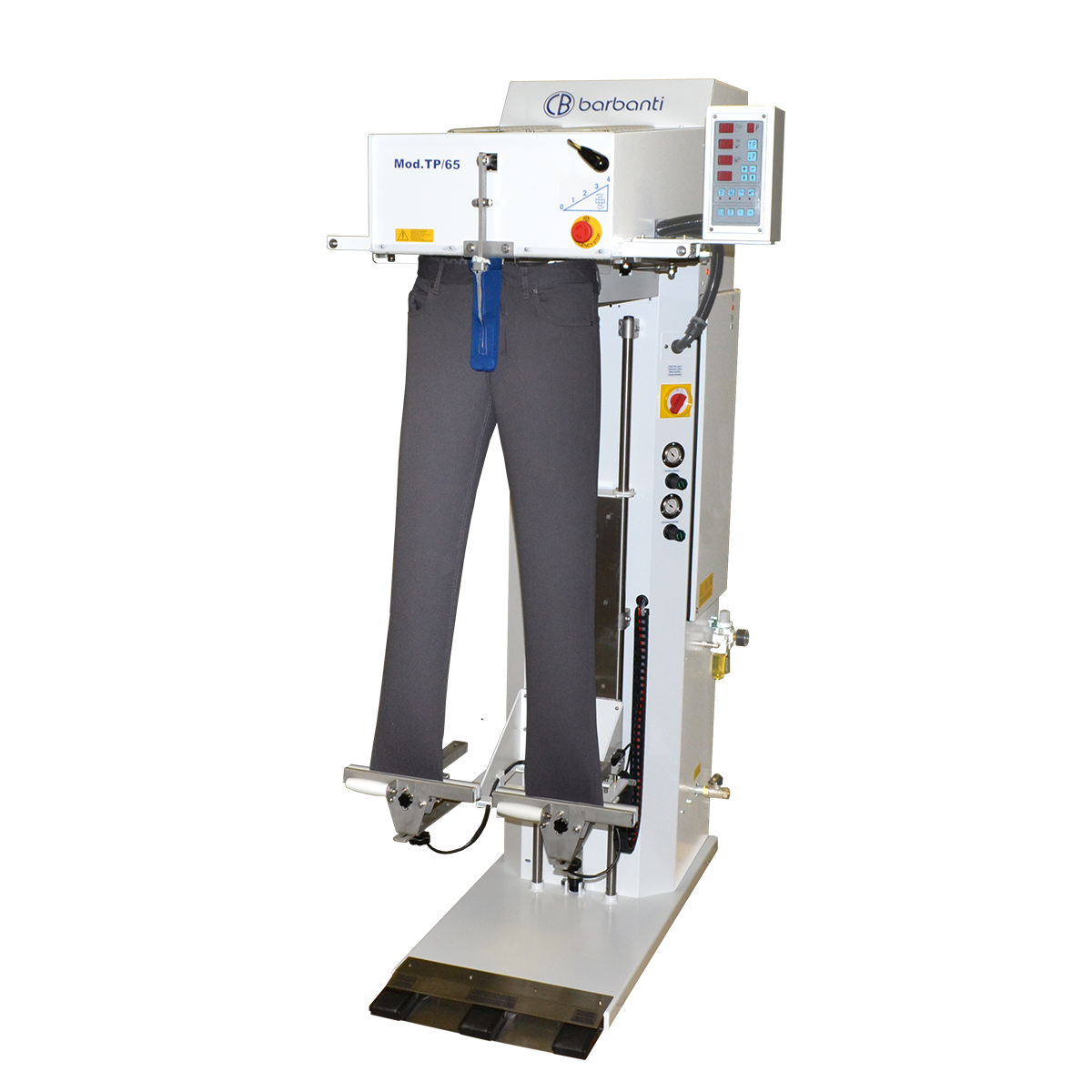

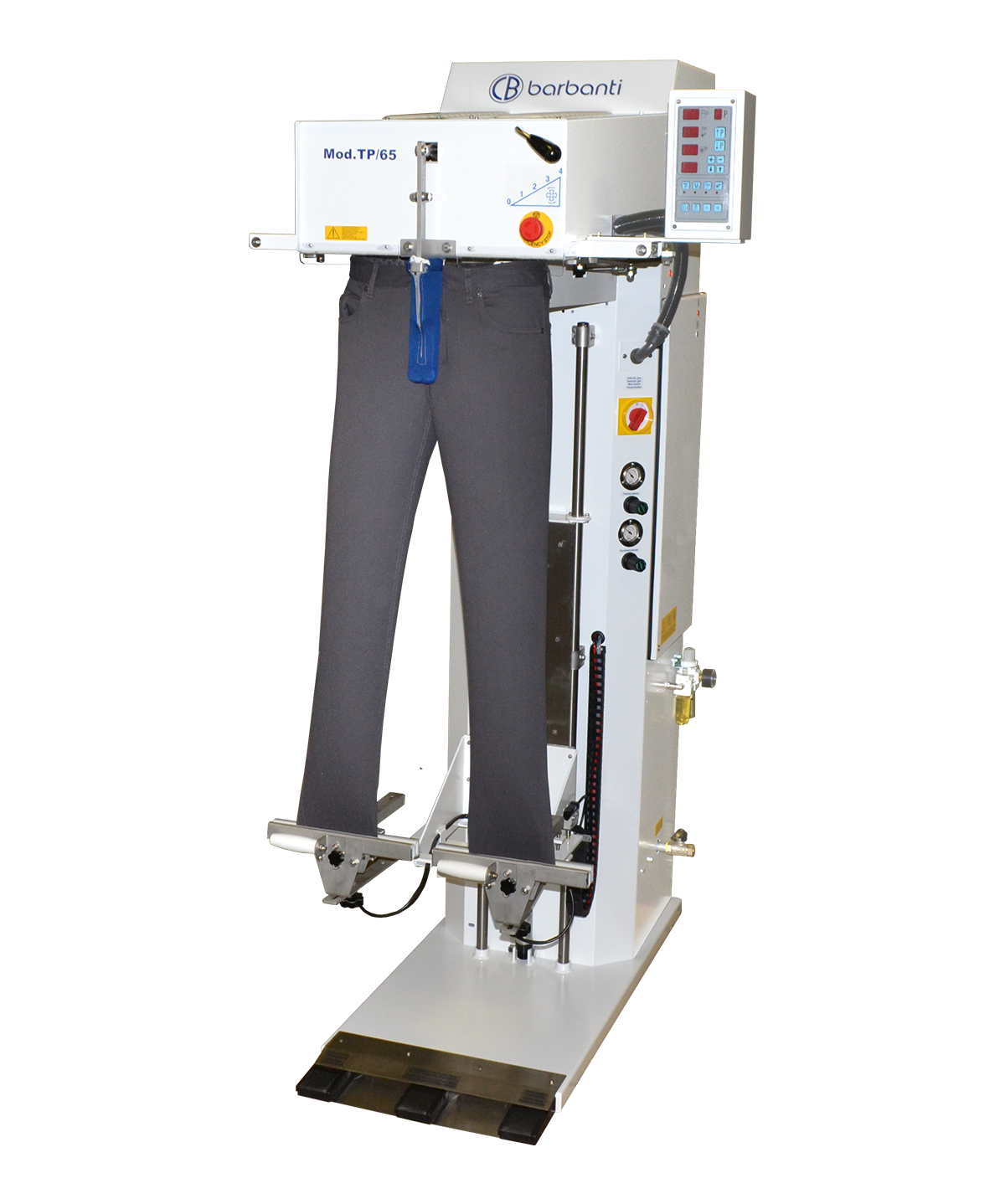

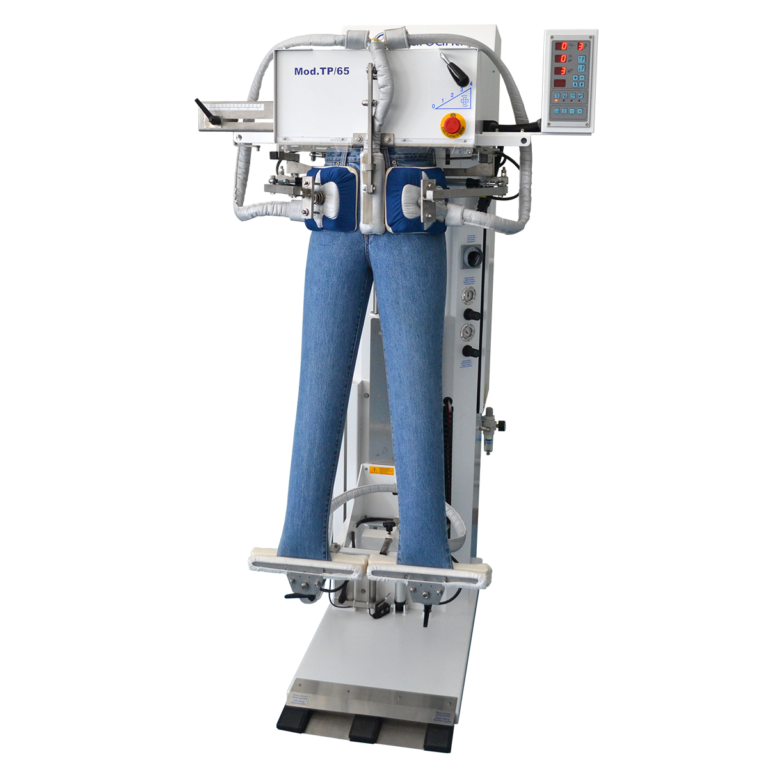

Trouser Topper for roughing out and finishing classic trousers, casual trousers and jeans in any fabric and size, wet or dry.
Powerful and indispensable machine for laundry & dry-cleaning industry, clothing manufacturers or communities, that allows very high hourly production.
The finishing cycle and the functions are automated, managed via computer, with the possibility of using the carriage with further tension to re-shape hard garments, such as jeans or, on the contrary, with anti-stretch function for delicate garments, which must not deform. Programs and piece counter settings possible.
User-friendly and customisable combining various optionals based on the industry, the client's needs and the work to perform.
User-friendly for all operators, even those who are not specialists. Fast and programmable work cycles, flexibility, excellent results.
Height-adjustable leg-clamping carriage, also for the finishing of shorts

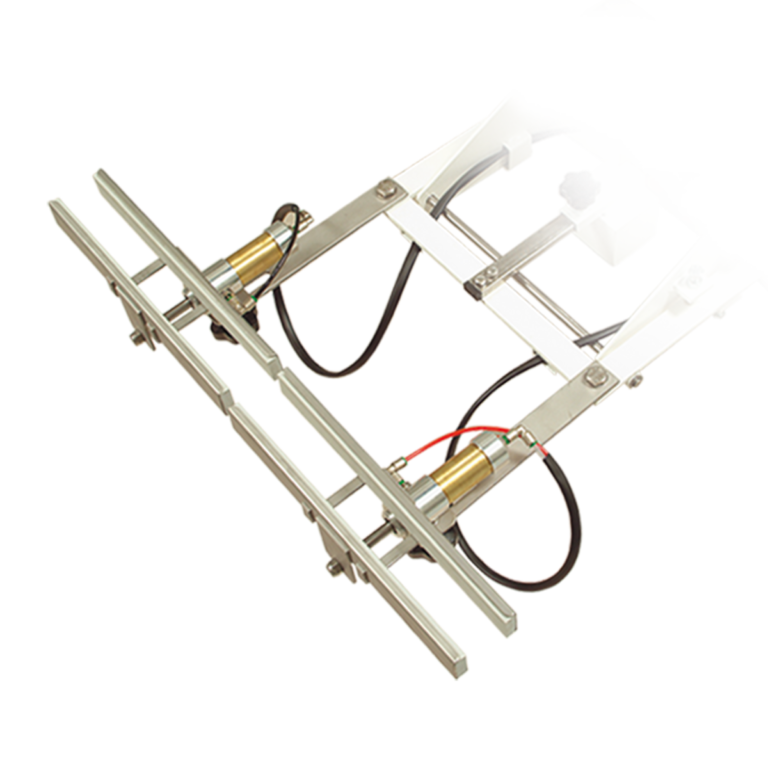

Pneumatic clamps for leg tensioning, also crosswise adjustable
Front fly clamp
Independent adjustment for leg and waistband tension
Computer with possibility of using the carriage with further tension to shape hard garments such as jeans or, on the contrary, anti-stretch for garments that must not deform
Airflow adjustment
Steam superheater, to avoid condensate formation that could wet or damage garments
Pneumatic steam valve.
Utmost reliability over time since only top quality components are used with proven durability.
Strength and very simple maintenance, thanks to the rational and clean construction that allows easy access if intervention is necessary.
All our systems are 100% tested to always guarantee the highest performing product on the market and customer satisfaction.
| TP65 | TP65E – 18Lt | ||
|---|---|---|---|
| Voltage on request | |||
| Fan motor | W | 1100 | 1100 |
| Boiler heating element | W | – | 9000/10500 |
| Steam consumption/h | kg | 10/20 | 10/20 |
| Air consumption/cycle | l | 8 | 8 |
Machine customisable based on client requirements, with the following optionals:
18 l built-in boiler, 9000 W;
2 HP fan motor

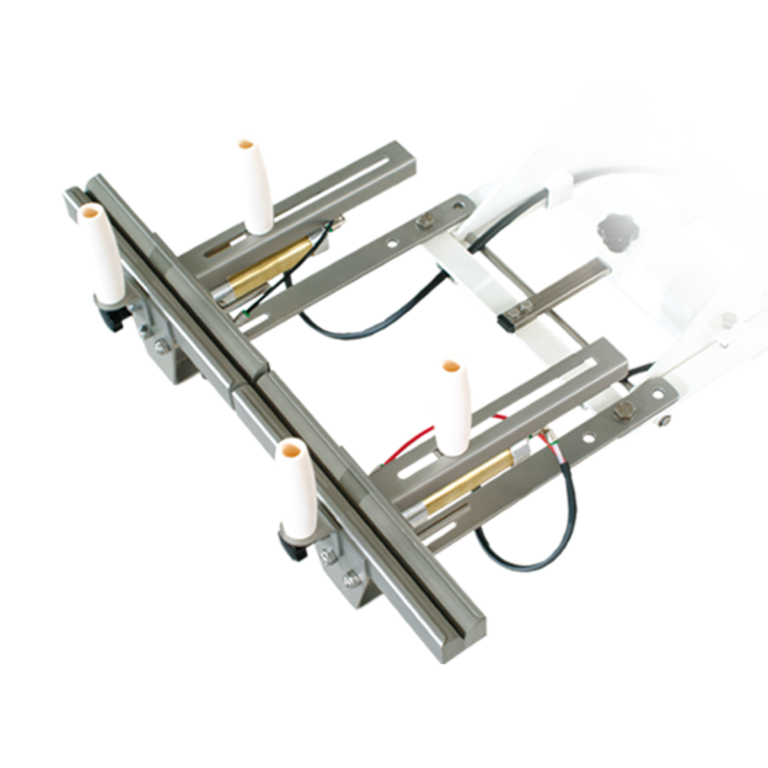

Double clamps
Air/steam gun
Waistband anti-stretch function with second pressure gauge
Child’s waistband forms

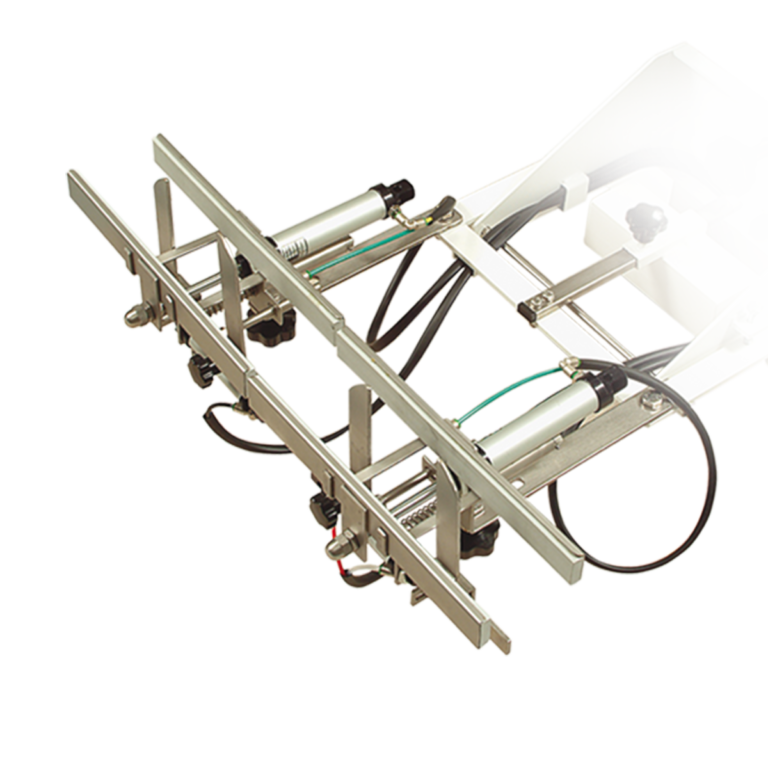

Side clamping for delicate garments not requiring tension
Mechanical size clamping on the waistband and the carriage to standardise sizes in the textile industry.
