Industrial finishing equipment
Spotting units > Mod. SM10

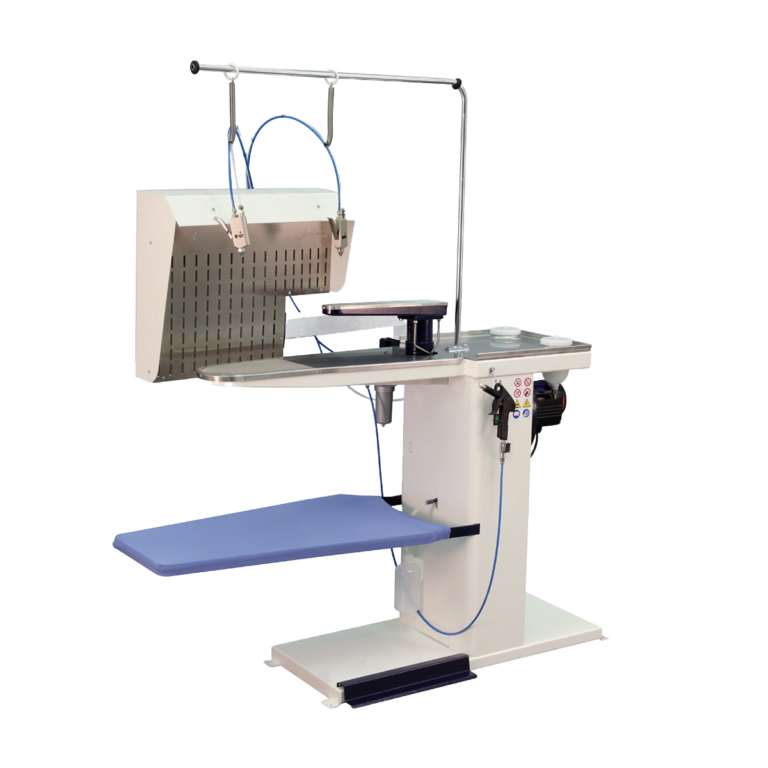

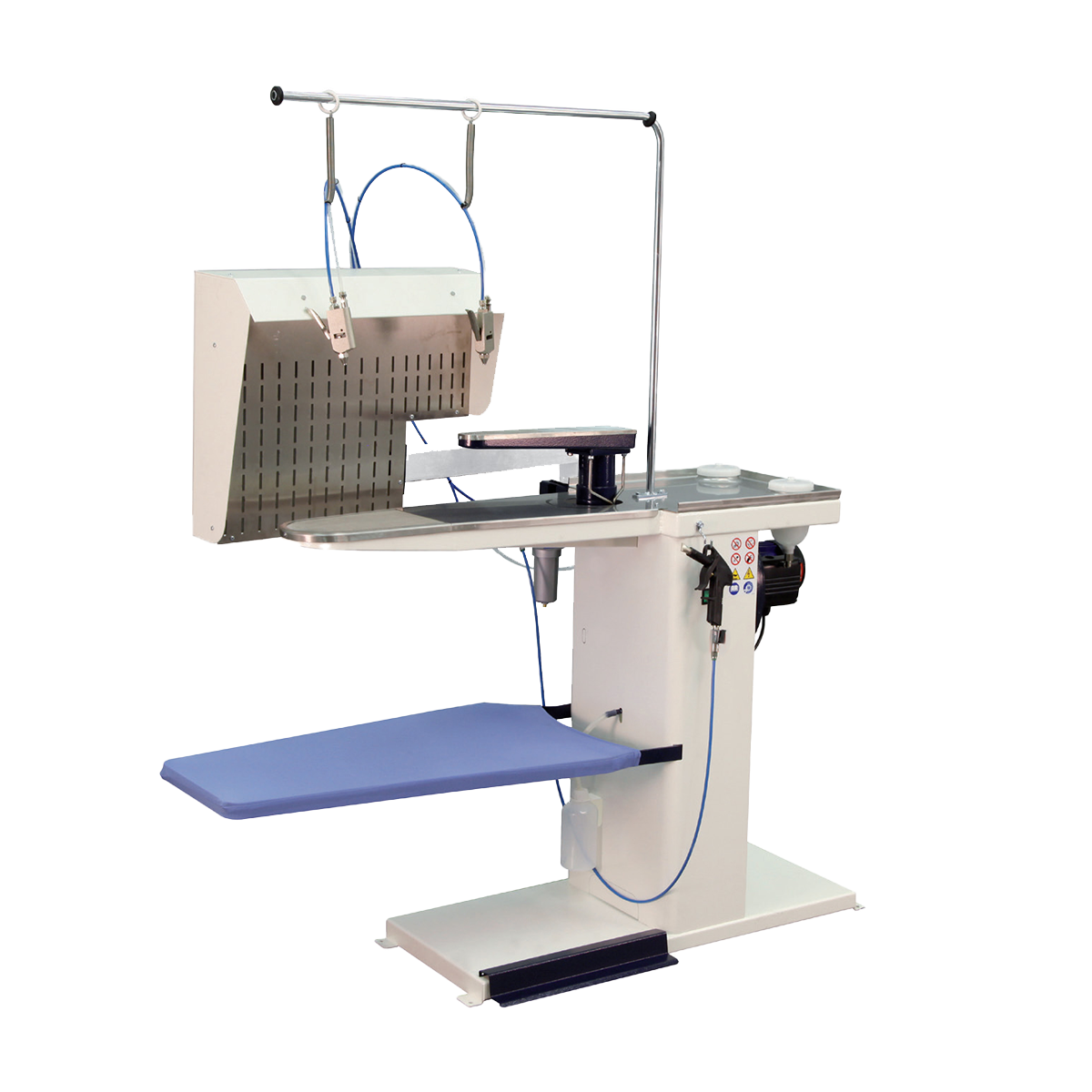

Versatile spotting unit, ideal for dry-cleaners, but also suitable for the clothes manufacturing industry to treat stains caused by the various work steps.

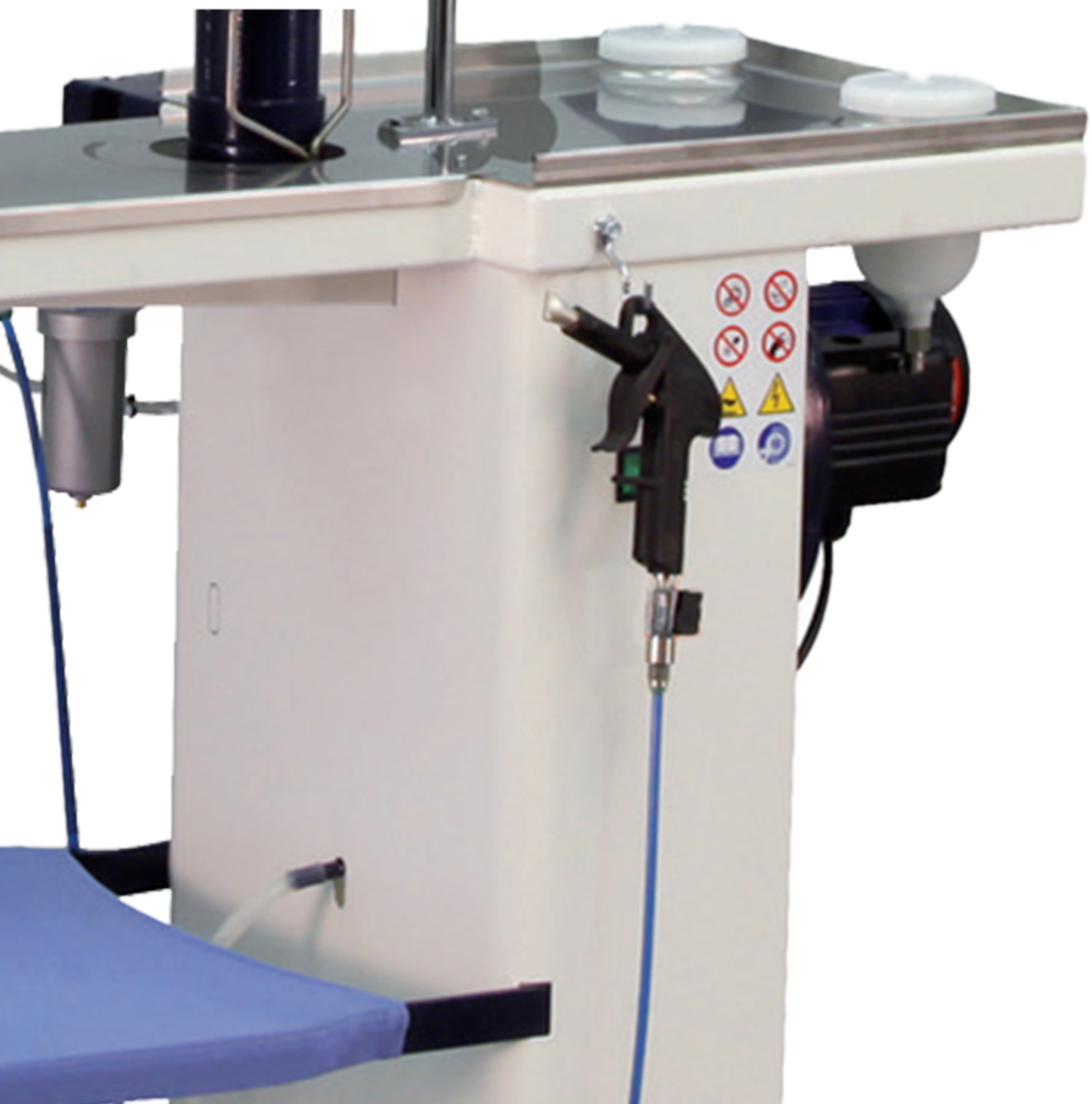

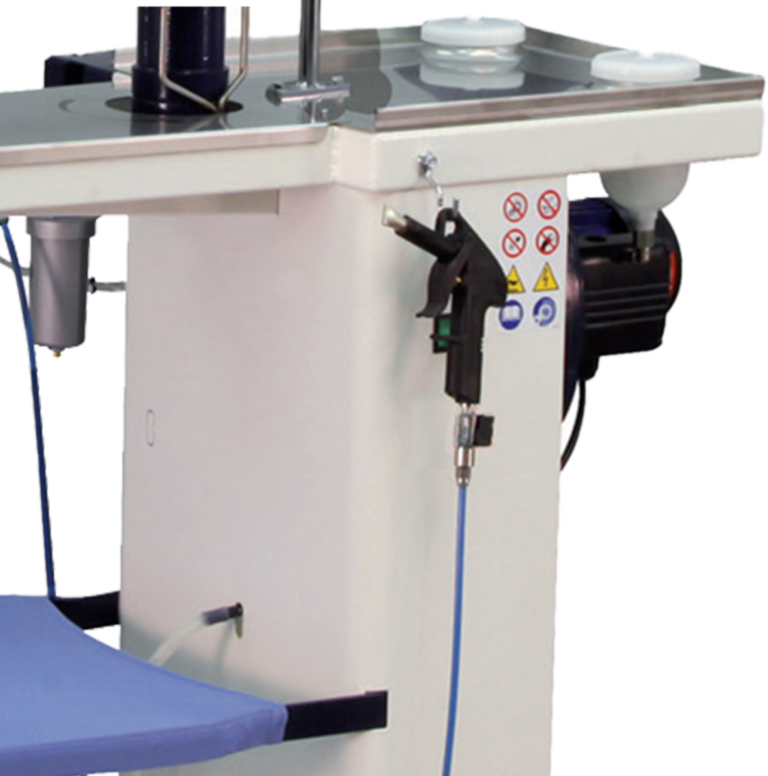

It comes with a large work surface and a stainless-steel arm to spot the sleeves. It has a garment support frame with a drip-cloth, air drying gun, air filter and two cold spotting guns with relevant independent circuit tanks for solvents. Available with an incorporated vacuum motor or preset for connection to a centralised vacuum.

Utmost reliability over time since only top quality components are used with proven durability.
Strength and very simple maintenance, thanks to the rational and clean construction that allows easy access if intervention is necessary.
All our systems are tested 100% to always guarantee the highest performing product on the market and customer satisfaction.
| SM10 | ||
|---|---|---|
| Voltage on request | ||
| Vacuum motor | kW | 0,25 |
| Compressor motor | kW | 2,2 – need for 400V/3+N-50Hz |
| Air consumption | NL/min | 150 ÷ 200 |
| Air working pressure | bar | 7,5 ÷ 9 |
| Steam consumption | Kg/h | 7 |
| Steam working pressure | bar | 4 ÷ 6 |
