Industrial finishing equipment
Spotting units > Mod. SM20

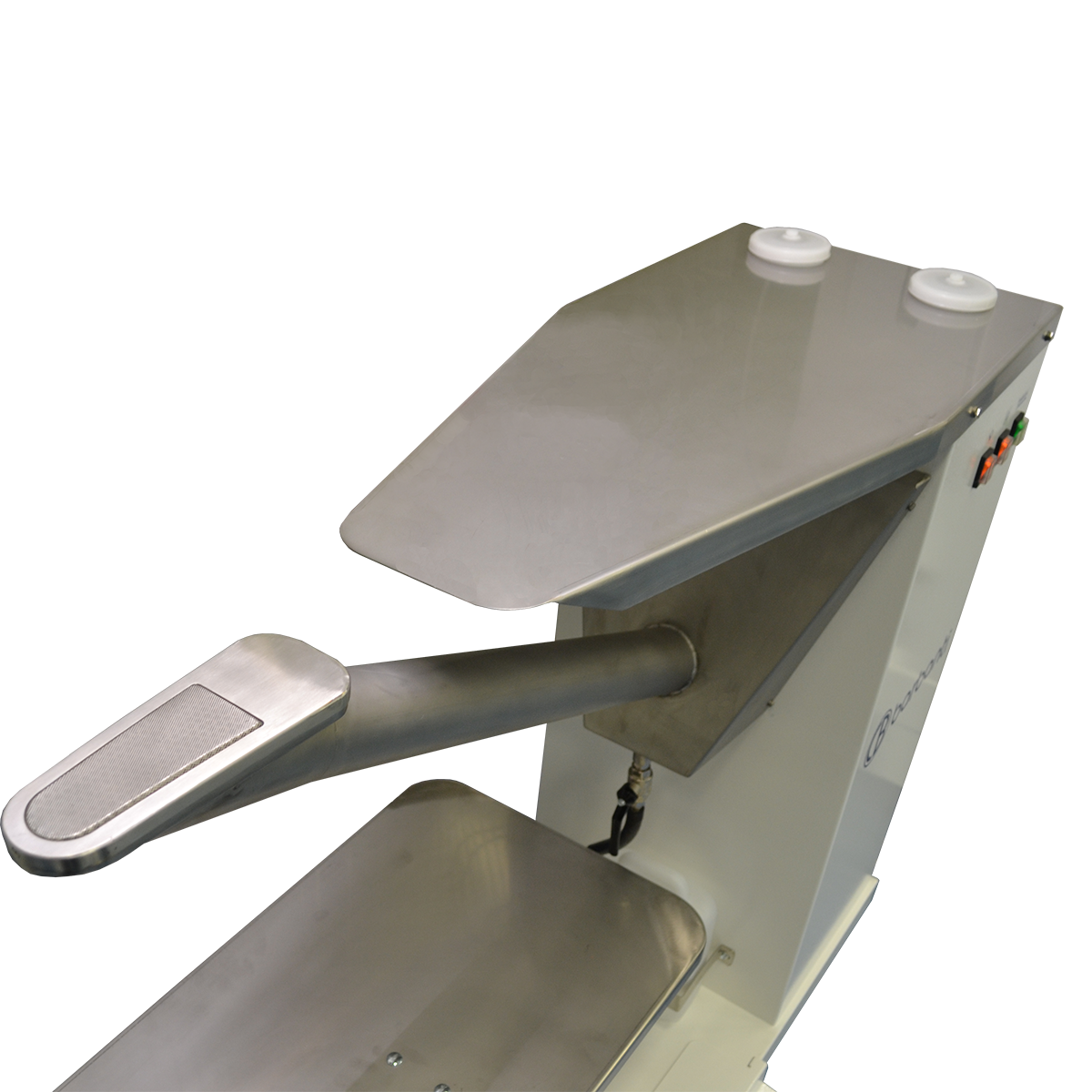

Mod. SM20 cold spotting unit designed and manufactured to solve problems identified by users, where the need arises for fast cleaning and facilitated spotting of difficult areas, such as sleeves and trouser legs.
A versatile machine, ideal for dry-cleaners, but also suitable for the clothes manufacturing industry to treat stains caused by the various work steps.
The small, round form facilitates positioning of any garment to reach and remove stains.
All parts that can come in contact with detergents or solvents are made of stainless steel, to allow perfect cleaning and to guarantee the duration of the components in contact with these products.
Thanks to the direct connection between vacuum motor and form, we have a powerful vacuum function without performance loss.
Extremely easy to clean simply using hot water, you can dismantle the entire piping and clean it also using running water, if necessary.
The SM20 spotting unit is equipped with vacuum motor, air drying gun, air filter and two cold spotting guns with relevant independent circuit tanks for solvents.

Utmost reliability over time since only top quality components are used with proven durability.
Strength and very simple maintenance, thanks to the rational and clean construction that allows easy access if intervention is necessary.
All our systems are tested 100% to always guarantee the highest performing product on the market and customer satisfaction.
| SM20 | ||
|---|---|---|
| Electric power supply | Hz | 230/1/50 230/1/60 |
| Vacuum motor | kW | 0,36 |
| Steam consumption | Kg/h | 7 |
| Steam working pressure | bar | 3 ÷ 5 |
| Vacuum discharge tube | mm | 100 Ø |
